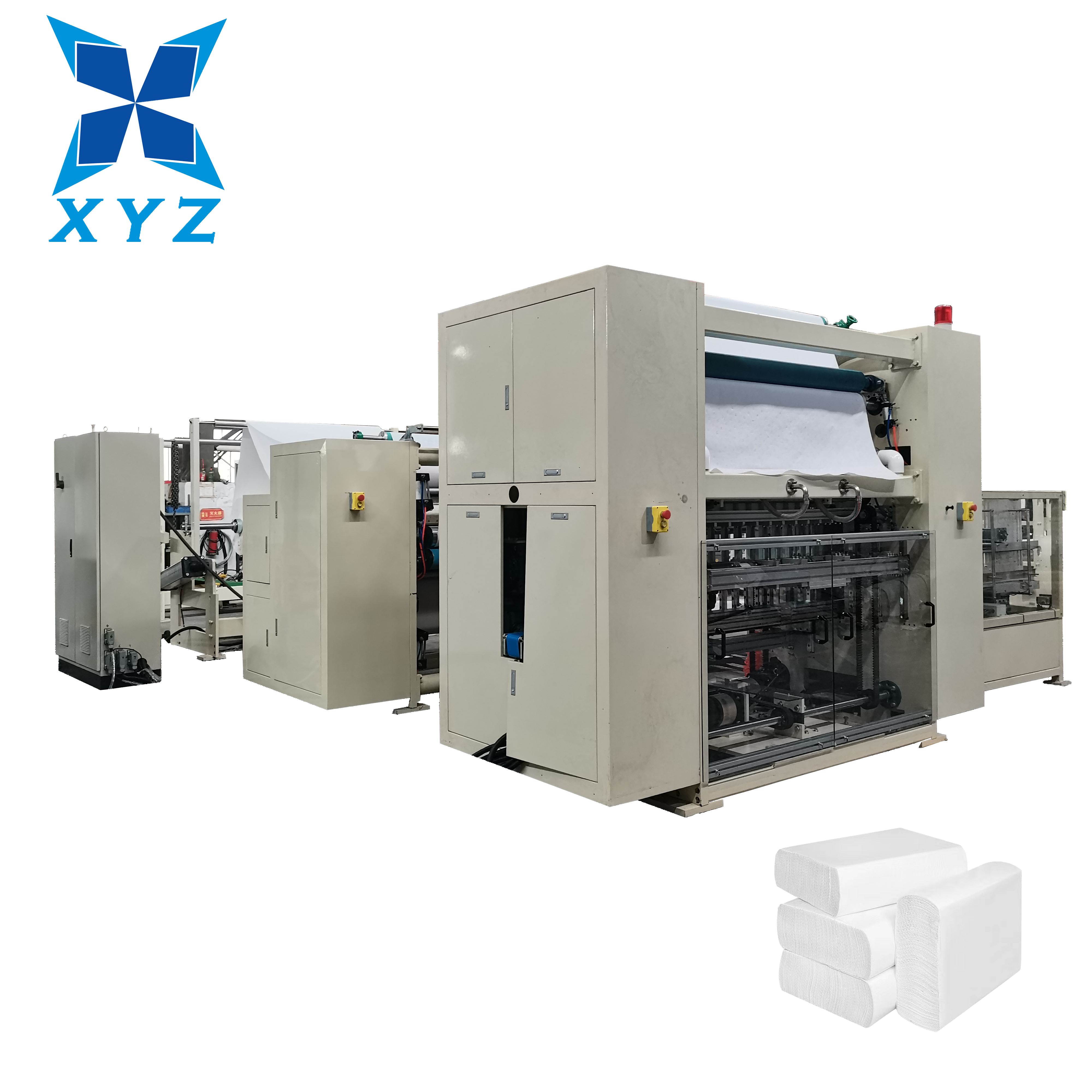

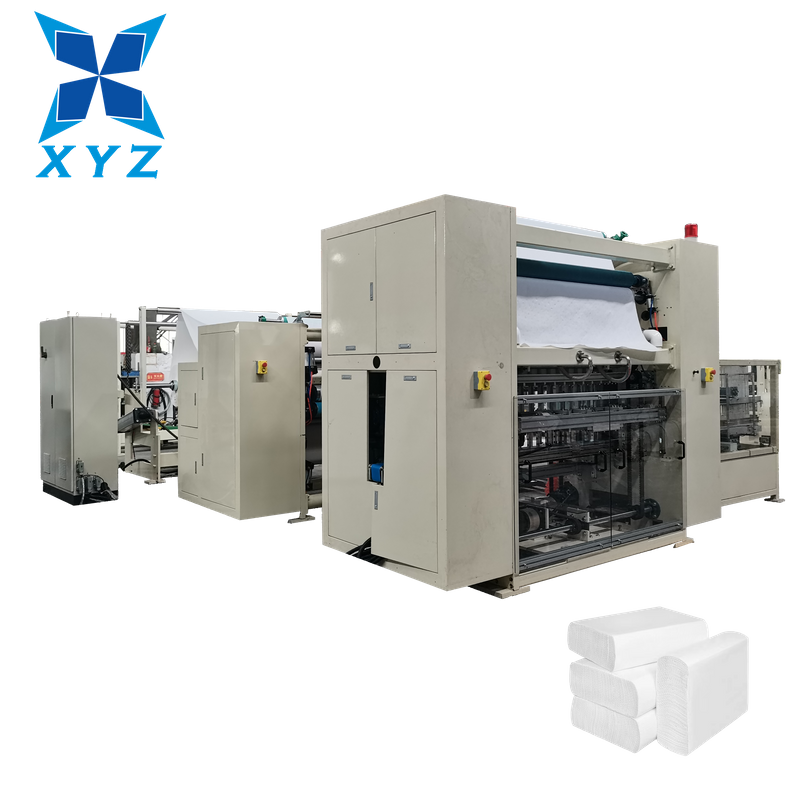

| Fully automatic hand towel paper machine |
| Name | Parameter |
| product fold method | 4 fold |
| suitable body paper | 18~25GSM double layers, 35~48GSM single layer |
| suitable body paper breadth | 710mm~2850mm |
| body paper diameter | 1500mm~2200mm |
| body paper element diameter | 3 ~14 inches |
| product specification | 210mm,215mm,220mm,225mm,230mm,240mm±1mm; |
| fold method | vacuum absorption fold |
| counting method | servo count |
| control system | Inovance,Siemens |
| install power | AC380V 50HZ 5.5~7.5KW(main motor)15KW~90KW(vacuum pump) |
| paper feed system | 1~2 paper feed shelf, buffer cylinder control |
| production speed | 0m~130m/min |
| required gas pressure | 0.5Mpa |
| longitudinal cutting device | continuing/not-continuing dots cutting function |
| packing and cutting method | automatic packaging |
| print device | 1 color~2 colors |
| upper gum compound device | hang glue |
| emboss method | net to net, point to point |
