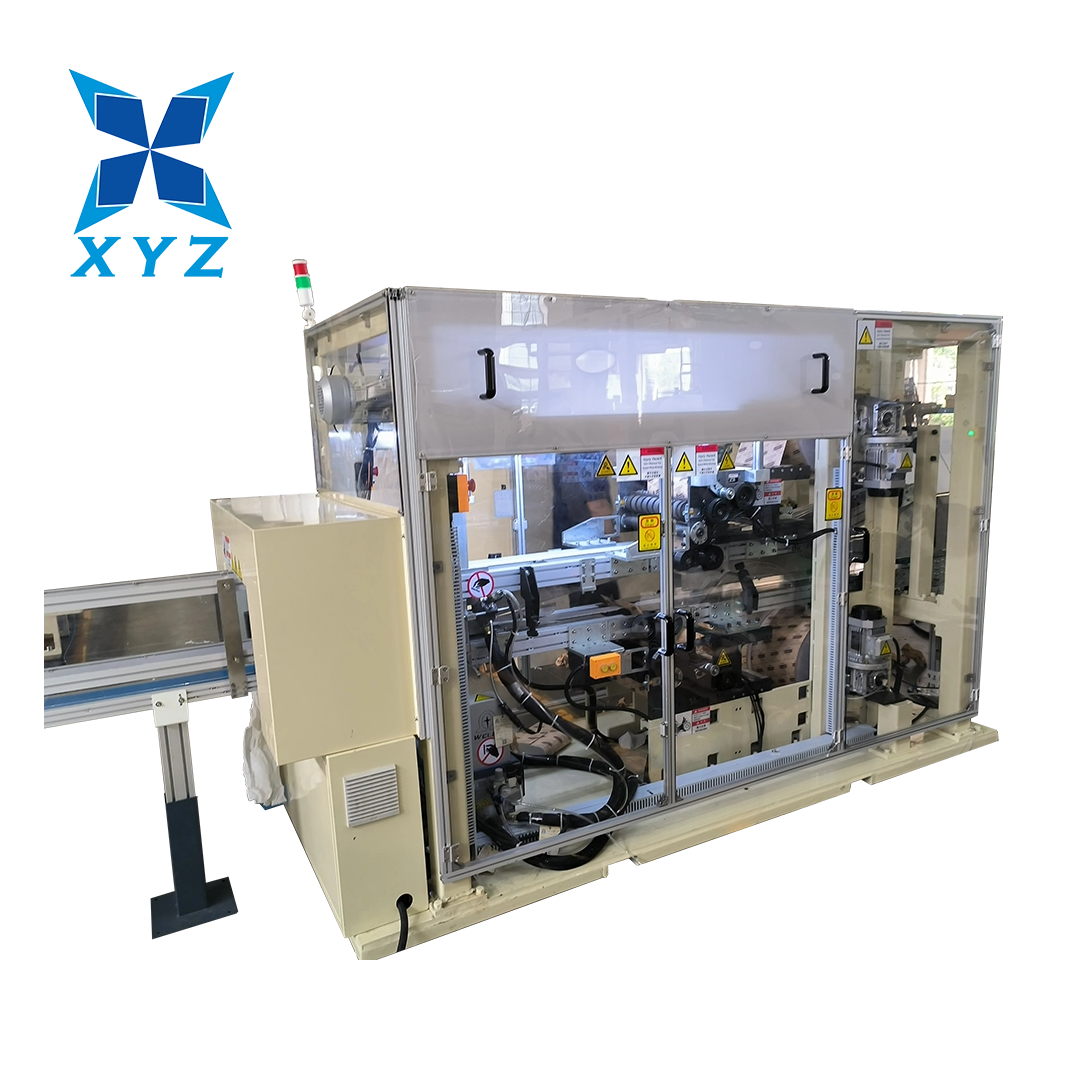

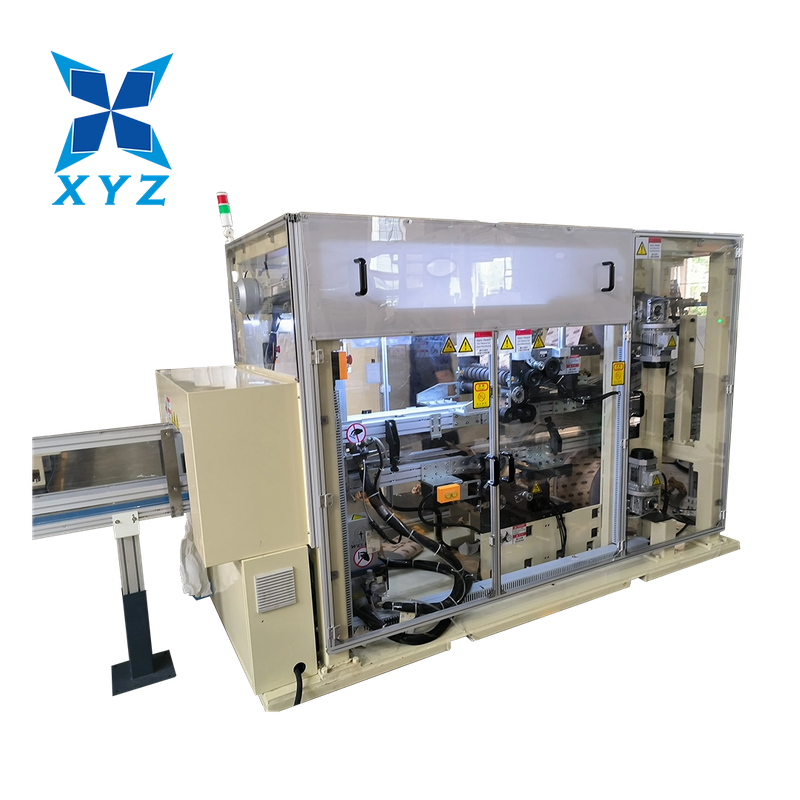

Fully automatic kraft paper bundling machine | |
Name | Parameter |
Design speed | 45 m/min |
Packaging speed | 10~30 m/min |
Packaging size | Unlimited length width+0~5mm height+0~5mm |
Mode | Towel paper packaging machine |
Net weight | 1200KG |
Main machine size | 4200mm*1150mm*1900mm |
Width of coiled kraft paper | 200mm≤width≤320mm |
Diameter of coiled kraft paper | External diameter:≦φ500mm Internal diameter:≧φ76mm |
control system | Siemens |
Weight of kraft paper | 50~80g/m2 |
Power supply voltage | 380V,50HZ |
Air source pressure | 0.5Mpa |
Gas consumption | 50 L/min |
Total power | 13KW |
Machine noise | dB≤78 |
Qualified rate | 95% |
