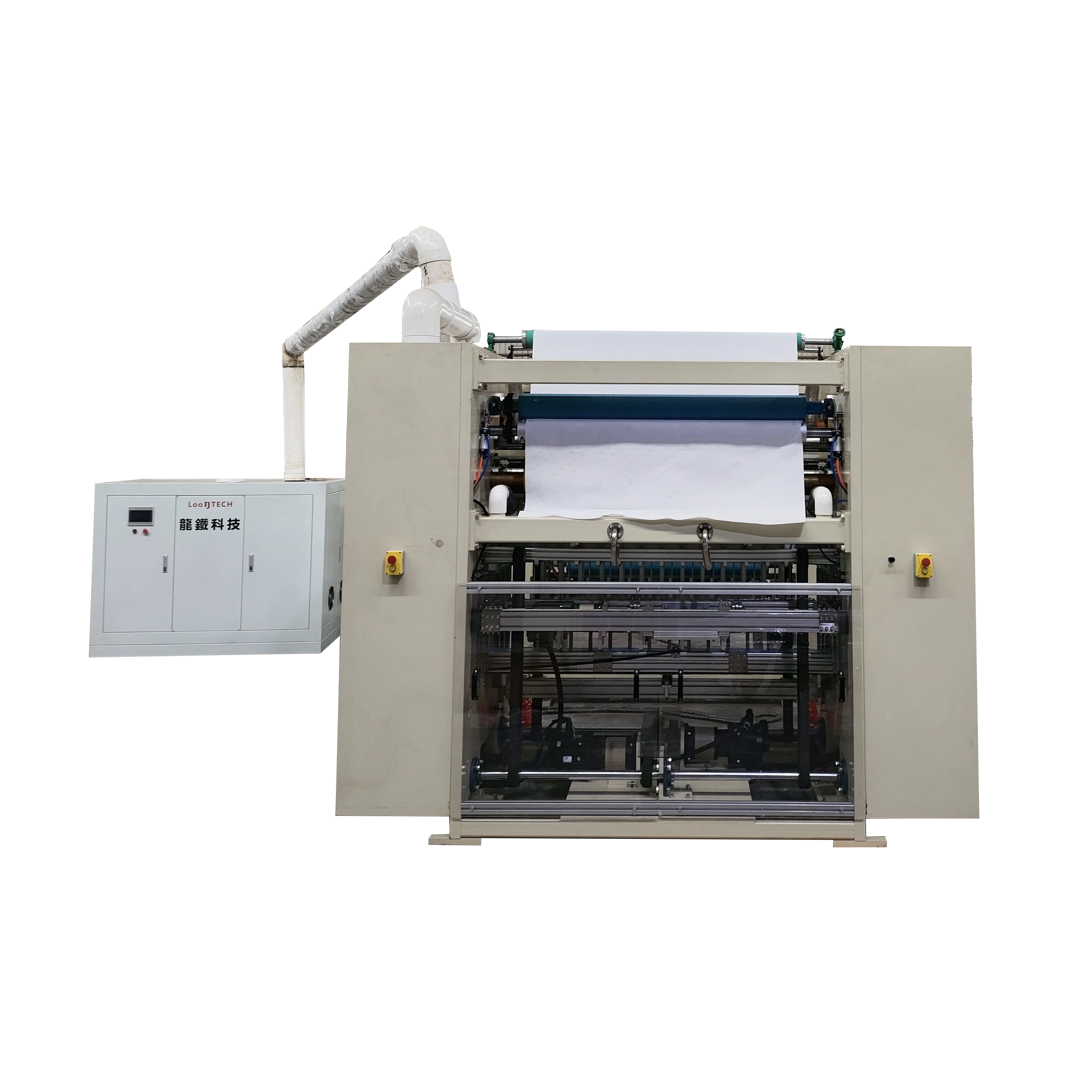

Hand Towel Tissue Folding Machine
You are here: Home » Product Category » Hand Towel Tissue Machine Series » Folding Machine » Hand Towel Tissue Folding Machine
Hand Towel Tissue Folding Machine
Hand Towel Tissue Folding Machine Hand Towel Tissue Folding Machine
Hand Towel Tissue Folding Machine Hand Towel Tissue Folding Machine
Hand Towel Tissue Folding Machine Hand Towel Tissue Folding Machine
Hand Towel Tissue Folding Machine Hand Towel Tissue Folding Machine
Hand Towel Tissue Folding Machine Hand Towel Tissue Folding Machine

loading

Hand Towel Tissue Folding Machine

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

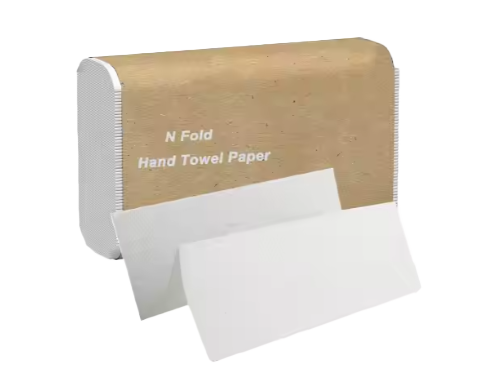

The fully automatic hand towel paper folding machine conveys the after-cutting bobbin paper through adhesive compounding, embossing, cutting with knife roller, and folding it into V fold, N fold, W fold, 4 fold, 5 fold and 6 fold that can be can be drawn continuing.

  • XYZ

Availability:
Quantity:
Inquire Add to Basket
Previous:
Next:
Hand Towel Tissue Machine Hand Towel Tissue Folding Machine Folding Machine
Product Description

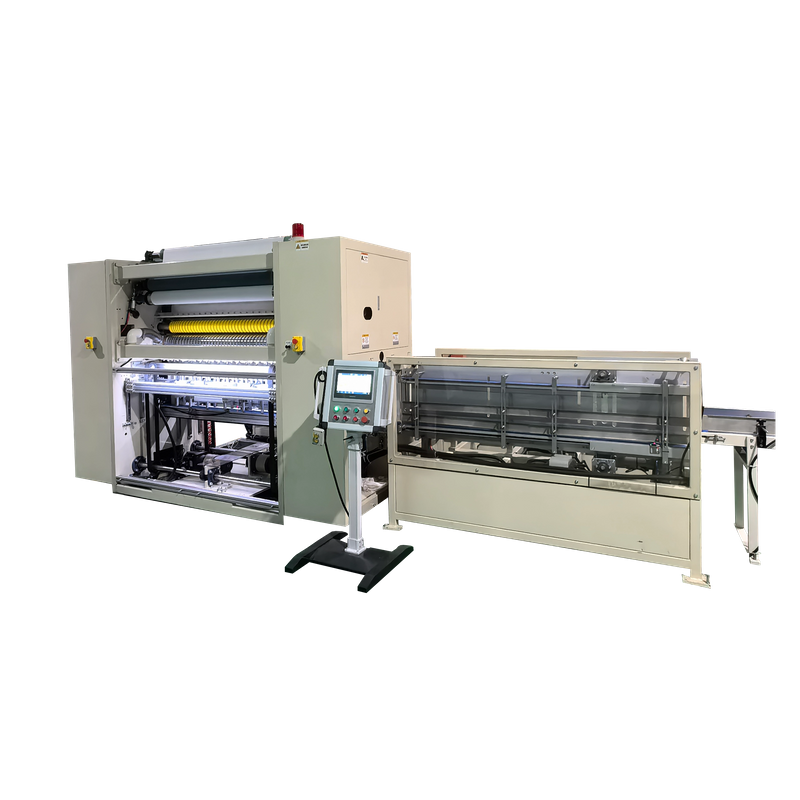

Fully automatic hand towel folding machine
Model6   lanes7   lanes8   lanes10   lanes12   lanes
Width of base paper1420mm1620mm1900mm2300mm2760mm
Speed600-800 pcs/min
Diameter of base paper≤Φ1500mm(Customization   is required in case of>Φ1500)
Core diameter of base paperΦ76mm(Customization is required in case of   other sizes)
suitable body paper18~25GSM double layers, 35~48GSM single layer
Sheetlength(fixed)Option 200/205/210/225/230/240/250/260(Other   pls specify)
Folding typeV fold, N fold, W fold, 4 fold, 5 fold, 6 fold
Fold methodvacuum absorption fold
Control systemPLC,converter,electromechanical and optic   integrated control
Unwind stand1~2 layers,indpendent driving,pneumatic loading
Inner stacking systemServo control,automatic stacking,counting and   auto-transfer
Emboss methodnet to net, point to point
Install   powerAC380V 50HZ 5.5~7.5KW(main motor)15KW~90KW(vacuum   pump)
Print   device1 color~2 colors


Products Display

8091f181314957d3bc4071b281c478b

Our company is a high-tech enterprise, integrating R&D, production and sales, dedicating to whole fully automatic household paper production line equipment from body paper to finished product packaging.
