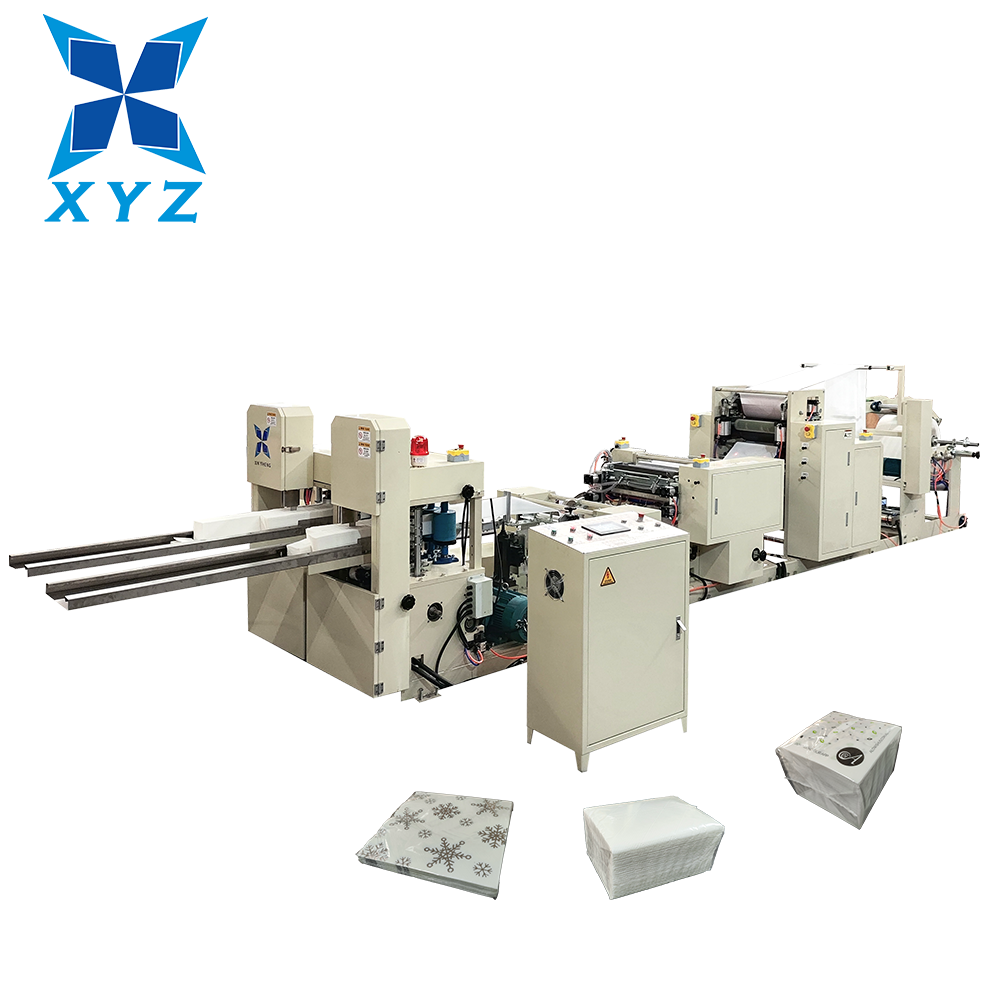

| Automatic napkin folding machine |
| Name | Parameter |
| Device model | XYZ-NF 200~430 |
| Suitable body paper breadth | 200mm~860mm |
| Body paper diameter | 1200mm~1500mm |
| Suitable body paper material | 13-25g/m² single layer or double layers |
| Body paper element diameter | Φ76mm(3″) |
| Fold dimension | (200mm×200mm)±2mm~(430mm×430mm)±2mm |
| Production specification | 1/6 fold | (100mm×67mm)±1mm~(215mm×143.5mm)±1mm |
| Install power | Power main motor | AC380V 50HZ 4KW~7.5KW(adjustable) |
| Electric motor | AC380V 50HZ 1.5KW(adjustable) |
| Production speed | 200~430 m/min |
| Required gas pressure | 0.5Mpa |
| Emboss method | Steel to wool, steel to gum, steel to cloth |
| Upper gum compound | Hang glue |
| Machine noise | dB≤78 |
| Qualified rate | 0.95 |
