Multi Servos Single Tissue Wrapping Machine
You are here: Home » Products » Bundling Paper Wrapping Machine » Packing Machine » Multi Servos Single Tissue Wrapping Machine

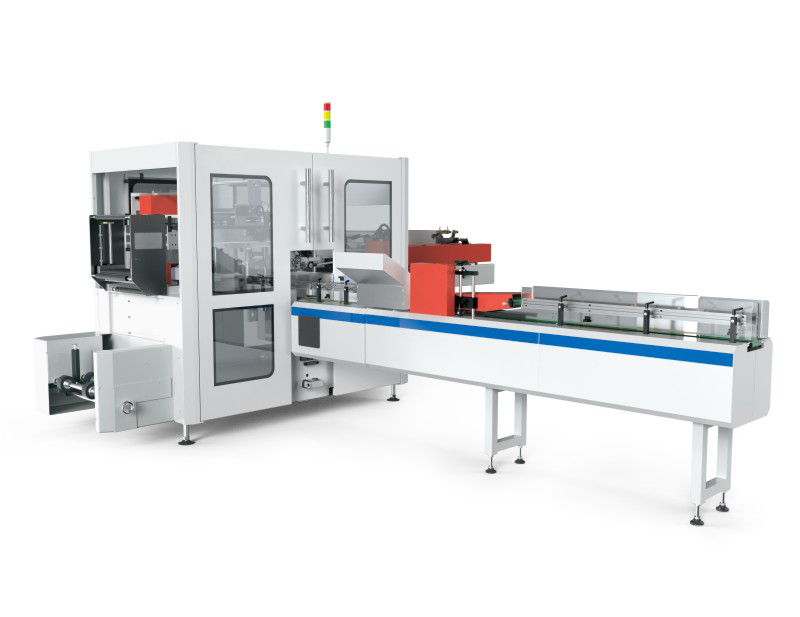

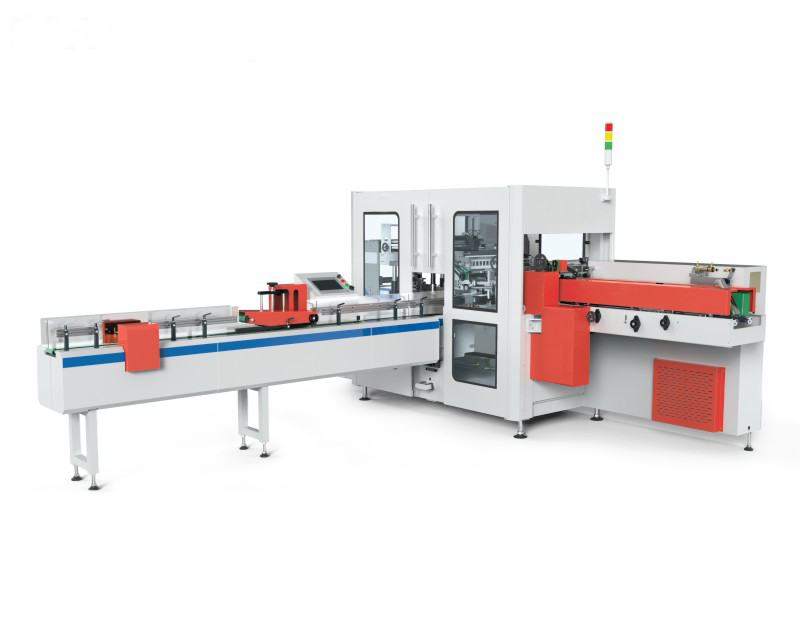

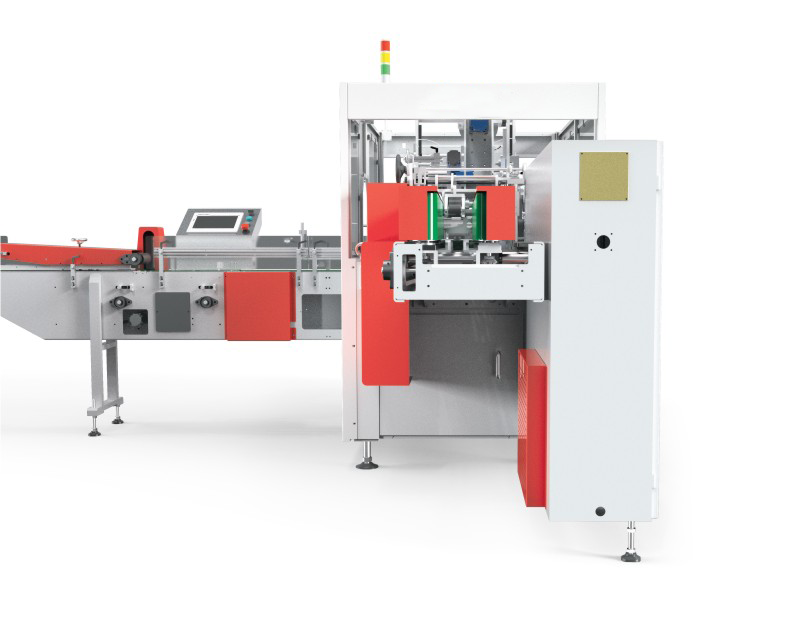

Multi Servos Single Tissue Wrapping Machine
Multi Servos Single Tissue Wrapping Machine Multi Servos Single Tissue Wrapping Machine
Multi Servos Single Tissue Wrapping Machine Multi Servos Single Tissue Wrapping Machine
Multi Servos Single Tissue Wrapping Machine Multi Servos Single Tissue Wrapping Machine

loading

Multi Servos Single Tissue Wrapping Machine

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • Multi Servos Single Tissue Wrapping Machine is suitable for automatically packing soft drawn V/M fold facail tissue, napkin and hand towel paper.
  • This machine has features of stable running under high speed and low noise, has advantages of complete operation functions, easy to operate, wide specification range, quick size change over, convenient maintenance, low cost for using etc.
  • Machine standard functions: electrical CAM adjustment, paper pressing and shaping, clapping shaping, auto speed decrease when no paper feeding, over height and over length dedection, feeding torque overload protection, pusher/insert plate/ edge guides overload protection.

  • 220

  • XYZ

Availability:
Quantity:
Inquire Add to Basket
Previous:
Next:
Multi Servos Single Tissue Wrapping Machine Single Tissue Wrapping Machine Tissue Wrapping Machine
Product Description
Max. working speed220 packs/min
Packing rangeL(95~210)/W(80~100)/H(30~100)mm
Scope of application
Soft drawn facial tissue, V fold paper towel, napkin
Feeding modeASF auto feeding system
Machine dimensionL4150*W4060*H1600mm
Machine weight3000KG
Film thickness0.04~0.05mm
Max. film roll dimensionDia.≤500mm, width: 340mm
Air compression
Pressure≥0.5mpa
Power supply
380V/50HZ
Total power20KW
Machine noise≤85db
Perforation

Stright line/Oval shape（Alternative)

Packaging film typeCPP, PE or composite film
Machine movement mode
16 shaft servo positioning control
Machine transmission modeThree tissue shaping structures, electrical hand wheel, each movement independent control


Our company is a high-tech enterprise, integrating R&D, production and sales, dedicating to whole fully automatic household paper production line equipment from body paper to finished product packaging.
