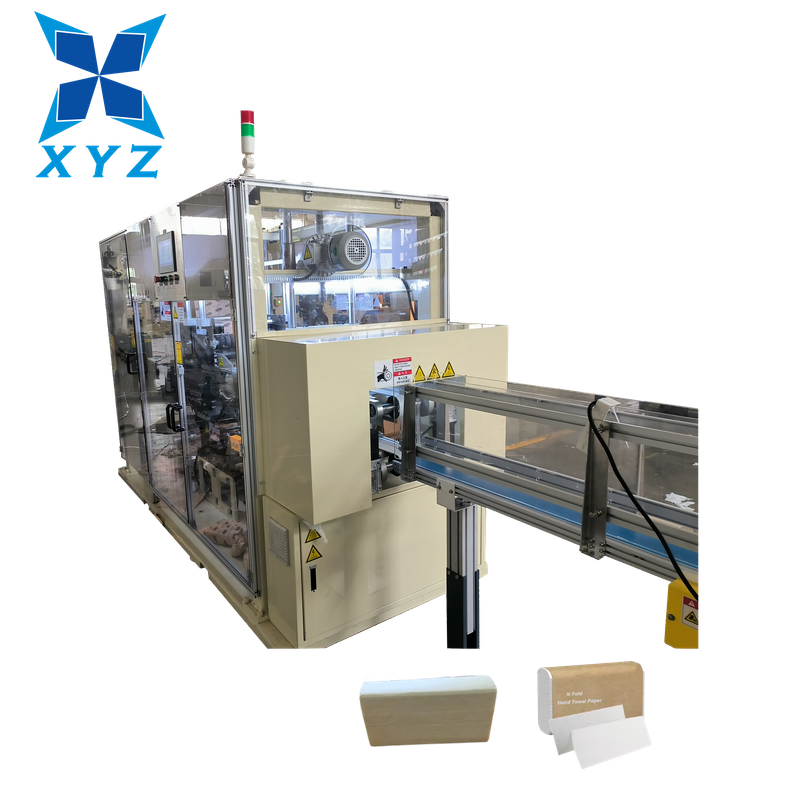

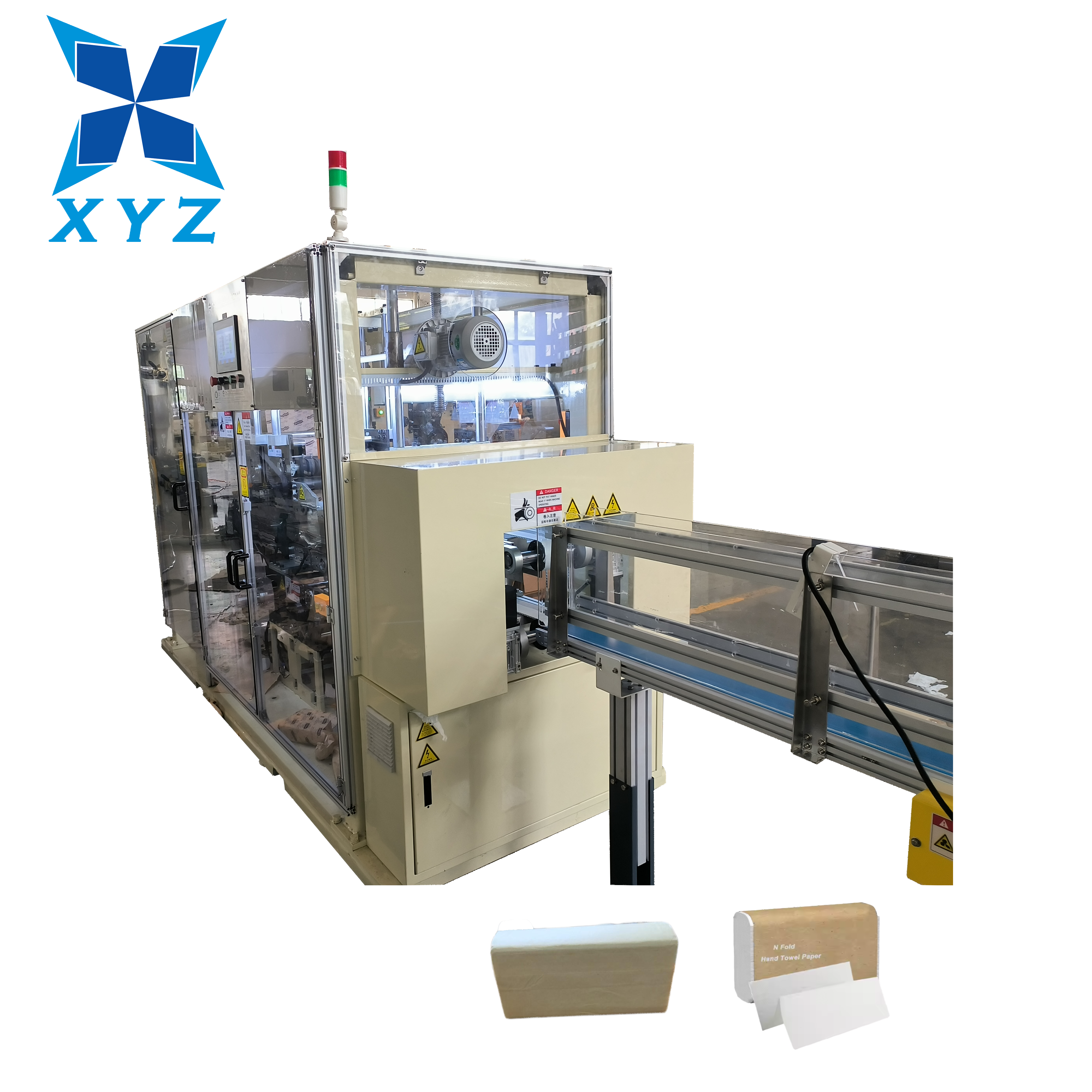

| Fully automatic kraft paper bundling machine |
| Name | Parameter |
| Design speed | 45 m/min |
| Packing speed | 10~30 m/min |
| Packing size | Unlimited length
width+0~5mm
height+0~5mm |
| Mode | Towel paper packaging machine |
| Net weight | 1200KG |
| Main machine size | 4200 mm*1150 mm*1900 mm |
| Width of coiled kraft paper | 200 mm ≤ width ≤ 320 mm |
| Diameter of coiled kraft paper | External diameter: ≤ Φ500mm
Internal diameter: ≥ Φ76mm |
| control system | Siemens |
| Weight of kraft paper | 50~80g/m2 |
| Power supply voltage | 380V,50HZ |
| Air source pressure | 0.5Mpa |
| Gas consumption | 50 L/min |
| Total power | 13KW |
| Machine noise | dB≤78 |
| Qualified rate | 95% |
